20-30mm EPDM Mat

If you are specifying flooring for a commercial gym, playground, or high-traffic fitness facility, the term “20-30mm EPDM Mat” represents a specific category of heavy-duty rubber flooring.

What Is EPDM Mat?

EPDM mat is a rubber flooring product manufactured using EPDM (Ethylene Propylene Diene Monomer), a synthetic rubber compound known for its exceptional resistance to weathering, UV radiation, and ozone. The primary distinction between an EPDM mat and a standard rubber mat lies in the material composition.

Standard rubber mats are often made from SBR (Styrene-Butadiene Rubber), which is commonly recycled from vehicle tires. While SBR is cost-effective, it degrades under prolonged sun exposure, leading to fading and surface cracking. In contrast, EPDM retains its physical properties and color stability outdoors, making it the preferred material for applications exposed to the elements. However, many products combine materials; a common construction for a 20-30mm EPDM Mat is a layered design featuring a durable SBR base for structural depth and shock absorption, topped with a 3mm EPDM surface layer for weatherproofing and color stability.

Structure and Surface Characteristics

The physical structure of a 20-30mm EPDM Mat is critical to its performance. The thickness range of 20mm to 30mm is specifically engineered for high-impact and heavy-load environments.

Key structural features often include a composite construction, as mentioned above, which uses an SBR base with an EPDM top layer to balance cost-effectiveness with performance. Surface textures vary based on the intended application; some mats feature a smooth, speckled finish for aesthetics and easy cleaning, while others incorporate ventilation grooves or raised buttons to enhance airflow and prevent moisture build-up. Edges are also an important consideration, with options ranging from flat edges that allow for seamless, adhesive-free installation—relying on weight and friction to stay in place—to interlocking edges that support modular layouts and enable easy reconfiguration without tools.

Primary Applications for 20-30mm EPDM Mats

The 20-30mm thickness range is not for light-duty use. It is specified for environments where impact resistance and floor protection are non-negotiable.

For playgrounds and outdoor areas, EPDM is the industry standard for outdoor playground safety surfaces due to its UV stability and colorfastness. The thickness of the mat directly correlates with shock absorption and critical fall height protection, and the weather resistance of the EPDM top layer ensures the surface does not become brittle or lose color over time.

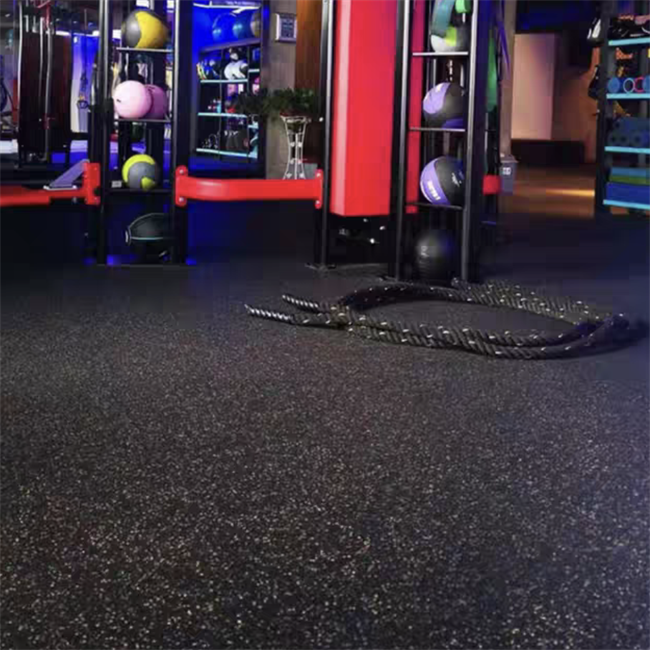

In gyms and fitness areas, particularly commercial and heavy-use home gyms, a 20-30mm EPDM Mat is recommended for free-weight zones, Olympic lifting platforms, and functional training areas such as CrossFit boxes. This thickness reduces impact noise significantly compared to bare concrete and provides essential cushioning to protect the subfloor from dropped barbells. A 30mm mat is typically recommended for high-impact Olympic lifting, while 20mm is suitable for heavy strength training.

Beyond gyms and playgrounds, these mats are also used in multi-sport halls, physiotherapy clinics, and school sports halls where impact absorption and joint protection are key priorities.

Key Advantages and Practical Value

The shift to EPDM or EPDM-topped mats offers distinct advantages that translate into tangible value for facility owners and end-users.

Superior weather and UV resistance is the defining advantage of EPDM. It prevents fading, chalking, and material breakdown caused by UV rays and ozone, ensuring the flooring maintains its appearance and integrity over an extended service life in outdoor conditions. Enhanced safety is another critical benefit; the shock-absorbing properties reduce the risk of injuries from falls, and the surface can be engineered to provide high slip resistance, which is vital in wet environments. Low maintenance is also a key factor, as EPDM surfaces are easy to clean with standard equipment and their non-porous nature prevents the absorption of water, sweat, and stains, allowing for quick drying times. Additionally, unlike pure SBR products which often have a strong "new tire" smell, EPDM has a minimal odor profile, making it more suitable for indoor environments.

How Thickness, Size, and Color Impact Selection

Choosing the right mat involves evaluating several parameters to match the application's demands.

Thickness is the primary determinant of impact protection. A 20mm mat is suitable for medium to heavy strength training, while a 30mm mat is best for high-impact use, Olympic lifting, and spaces where maximum noise reduction is required. Thicker mats are also necessary under heavier loads and higher drop heights.

Size and connection method influence the installation process. Common formats include 1m x 1m tiles or 50cm x 50cm tiles. Interlocking tiles allow for flexible layouts and tool-free installation, whereas butt-joint tiles rely on the weight of the rubber to stay in place.

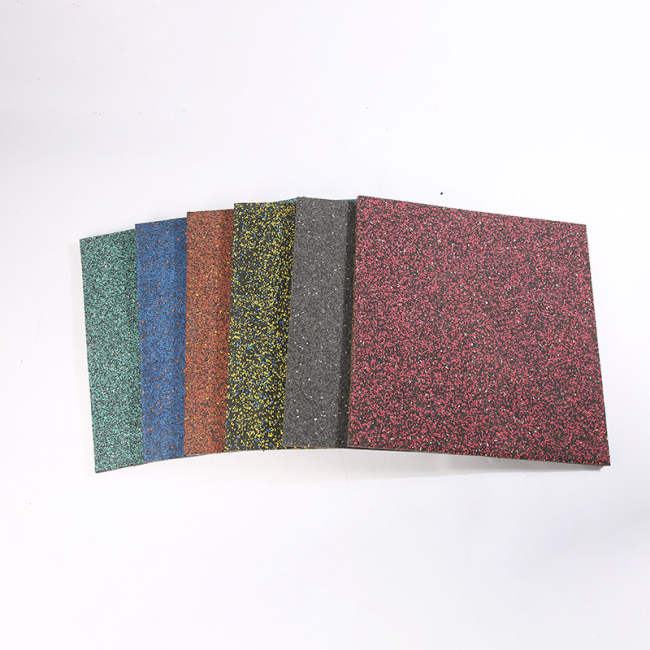

Color and surface design address both aesthetic and functional needs. While black is the standard choice, EPDM can be produced in various colors or with colored flecks. A lighter, speckled surface can help conceal dirt and wear, while solid colors are often used for branding or designating specific zones within a facility.

Comparative Selection: EPDM vs. Other Flooring Materials

Understanding where EPDM excels—and where it does not—is essential for correct specification.

When comparing EPDM mats to standard SBR rubber mats, the key differentiator is environmental performance. EPDM is the superior choice for outdoor areas, playgrounds, and premium commercial gyms where UV exposure is a concern, as it offers excellent weather resistance and color stability. SBR mats, on the other hand, are better suited for indoor gyms, budget-conscious commercial facilities, garages, and stables, but they are not recommended for outdoor applications due to their poor UV resistance.

For applications like yoga studios or temporary flooring, EVA foam may be considered, but it offers low durability and will flatten under heavy loads, degrading outdoors within a relatively short timeframe.

In short, EPDM is the correct choice when UV stability and long-term color retention are required. For purely indoor applications with no UV exposure, SBR mats present a more cost-effective alternative.

Frequently Asked Questions (FAQ)

Can I use a 20mm EPDM mat outdoors?

Yes, provided it has an EPDM surface layer. Standard SBR mats will degrade in UV light, but EPDM is formulated to withstand sun, rain, and frost.

What thickness of mat do I need for a home gym with free weights?

For light to medium weights (dumbbells, kettlebells), 15-20mm is recommended. For Olympic lifting or drops from overhead, a 20-25mm or 30mm mat is essential.

Are these mats easy to install?

Yes. Many mats simply butt together, relying on their weight to stay in place, or they feature interlocking edges that require no tools or glue.

Do EPDM mats reduce noise?

Yes. A 20-30mm rubber mat can significantly reduce impact noise compared to a hard floor surface.

Do the colors fade on EPDM mats?

EPDM is known for its color stability and UV resistance. It is significantly more colorfast than other rubbers, making it the preferred choice for outdoor applications where fading is a concern.

Find the Right 20-30mm EPDM Mat for Your Project

Selecting the correct EPDM flooring impacts the safety, longevity, and performance of your facility. Whether you are designing a commercial fitness center, a children’s playground, or an outdoor training area, the specific requirements of your project will determine the ideal mat.

Explore your options for a 20-30mm EPDM Mat tailored to your needs. Get in touch to receive specifications and samples for your upcoming project. Request a quote based on your required thickness, size, and color quantity. Let our team help you select the correct EPDM flooring solution for your application. Contact us today to discuss your project and order a sample.
